AC 120V - 240V Electric Industrial Heaters Dynamic Heating 5W 9W RCE016 IP54 / II

Name: AC 120V 240V Electric Industrial Heaters Dynamic Heating 5W 9W RCE016 IP54 II
Brand: Winston/OEM
Price: 1 USD

Buy cheap AC 120V - 240V Electric Industrial Heaters Dynamic Heating 5W 9W RCE016 IP54 / II product

Brand Name : Winston/OEM

Model Number : RCE016 5W 9W

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Voltage : 120 - 240VAC* (min. 110V, max. 265V)

Heating element : PTC resistor - temperature limiting

Protection class : IP54 / II (double insulated)

Power : 5W 9W

OEM : Yes

Operating/Storage temperature : -45 to +70°C (-49 to +158°F)

Operating/Storage humidity : max. 90% RH (non-condensing)

Contact Now

AC 120V - 240V Electric Industrial Heaters Dynamic Heating 5W 9W RCE016 IP54 / II

APPLICATION

● Temperature limiting

● Wide voltage range

● Dynamic heating up

● Energy saving

● Compact

Small heaters designed to prevent condensation and to ensure a minimum operating temperature in small enclosures.

TECHNICAL PARAMETER

Operating voltage	120-240V AC/DC* (min. 110V, max. 265V)
Heating element	PTC resistor, self regulating and temperature limiting
Heater body	aluminium
Mounting	see Accessories
Fitting position	Variable
Dimensions	Length 45mm2, 10mm2
Operating/Storage temperature	-45 to +70 °C (-49 to +158 °F)
Protection type/Protection class	IP32 / II (double insulated)
Accessoires	Mounting clips (see illustration), Art. No. 09008.0-01

*Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

Art. No.	Heating capacity*	Inrush current max.	Pre-fuse T (time-delay)	Surface temperature (approx.)	Connection	Weight (approx.)
01622.0-00	5W	2.0A	1A	165°C	2 x AWG 22 sheathed cable (silicone)	20g
01623.0-00	9W	2.5A	2A	175°C	2 x AWG 22 sheathed cable (silicone)	20g

*at 20°C (68°F) ambient temperature

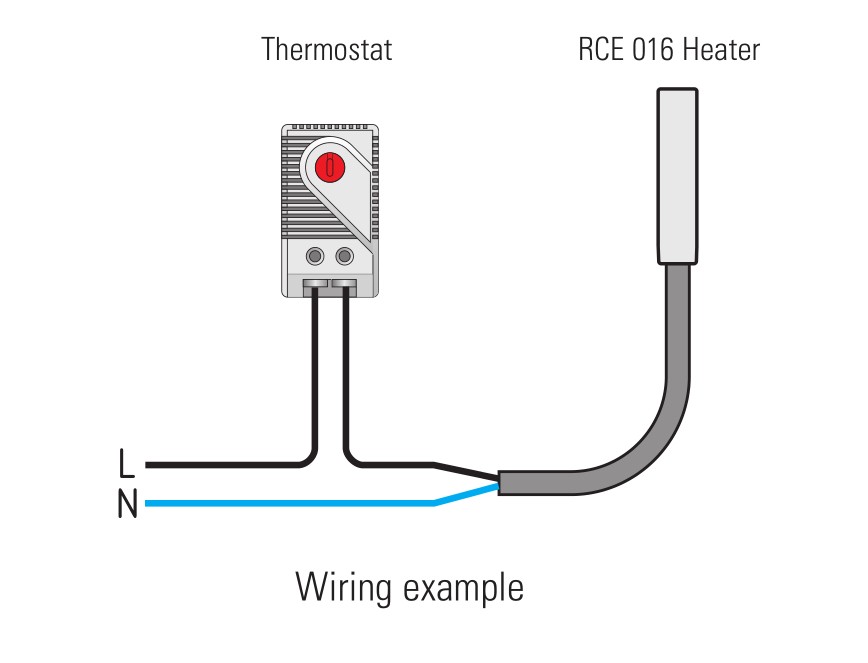

WIRING DIAGRAM

AC 120V - 240V Electric Industrial Heaters Dynamic Heating 5W 9W RCE016 IP54 / II

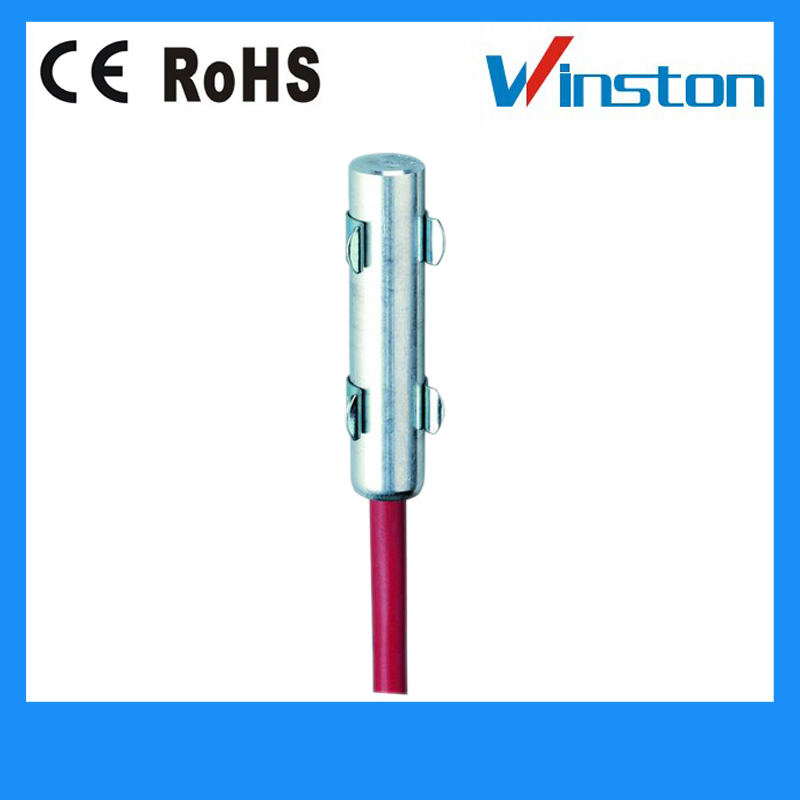

Product picture

AC 120V - 240V Electric Industrial Heaters Dynamic Heating 5W 9W RCE016 IP54 / II

Our Services

Customized Samples are acceptable
Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
Welcome and accept 100% customers factory inspection before the production
Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
We provide 7 days 24 hours service!

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
