DC 10W / 20W Aluminium Industrial Electrical Heaters Din Rail Temperature Limiting

Name: DC 10W 20W Aluminium Industrial Electrical Heaters Din Rail Temperature Limiting
Brand: Winston/OEM
Price: 1 USD

Buy cheap DC 10W / 20W Aluminium Industrial Electrical Heaters Din Rail Temperature Limiting product

Brand Name : Winston/OEM

Model Number : HGK047 10W 20W 30W

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Voltage : 110-120V AC/DC

Heating element : PTC resistor - temperature limiting

Protection class : IP44 / I (earthed)

Power : 10W 20W 30W

OEM : Yes

Operating/Storage temperature : -45 to +70°C (-49 to +158°F)

Contact Now

DC 10W / 20W Aluminium Industrial Electrical Heaters Din Rail Temperature Limiting

Application

● Pressure clamp conectors

● Dynamic heating up

● Wide voltage range

● Temperature limiting

● Energy saving

● Clip fixing

● Quick installation

These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.

TECHNICAL PARAMETER

Operating voltage	120-240V AC/DC* (min. 110V, max. 265V)
Heating element	PTC resistor, temperature limiting
Heater body	extruded aluminium profile, anodised
Connection	3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm²
Connection casing	plastic according to UL94 V-0, black
Mounting	clip for 35mm DIN rail, EN 60715
Fitting position	vertical airflow (air outlet up, connection on bottom)
Operating/Storage temperature	-45 to +70 °C (-49 to +158 °F)
Operating / Storage humidity	max. 90 % RH (non-condensing)
Protection type/Protection class	IP20 / I (earthed)
Approvals	VDE + UL File No. E150057
Accessoires	screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces)

* Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

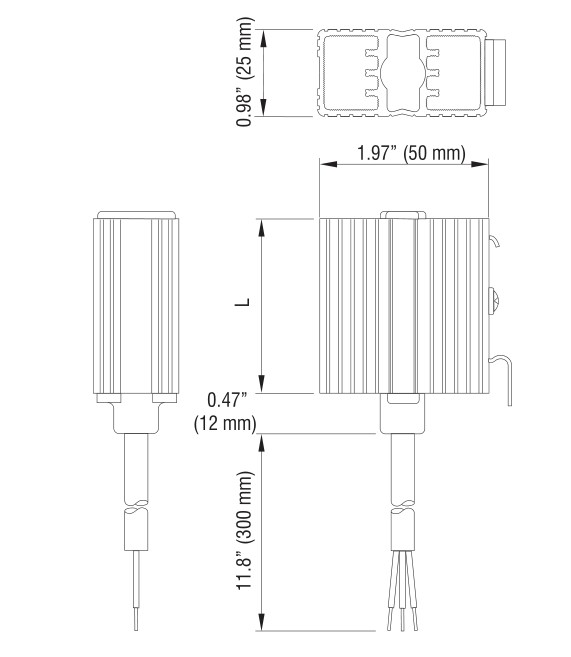

Art. No.	Operating voltage	Heating capacity⊃1;	Inrush current max.	Pre-fuse T (time delay)	Length (L)	Weight (approx.)	Connection
04700.0-00	120-240V AC/DC	10W	1.0A	1A	52mm	0.1kg	3 x 0,5mm2; x 300mm cable (silicone)
04701.0-00	120-240V AC/DC	20W	2.5A	2A	60mm	0.2kg	3 x 0,5mm2; x 300mm cable (silicone)
04702.0-00	120-240V AC/DC	30W	3.0A	2A	70mm	0.2kg	3 x 0,5mm2; x 300mm cable (silicone)
04700.9-00	110-120V AC/DC	10W	1.0A	1A	52mm	0.1kg	3 x AWG 20 x 300mm cable
04701.9-00	110-120V AC/DC	20W	1.5A	2A	70mm	0.2kg	3 x AWG 20 x 300mm cable
04702.9-00	110-120V AC/DC	30W	1.5A	2A	100mm	0.2kg	3 x AWG 20 x 300mm cable

1; at 20°C (68°F) ambient temperature;
2; (min. 110V, max 265V) Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

WIRING DIAGRAM

DC 10W / 20W Aluminium Industrial Electrical Heaters Din Rail Temperature Limiting

Product picture

DC 10W / 20W Aluminium Industrial Electrical Heaters Din Rail Temperature Limiting
