Aluminum 250W Switching Waterproof Power Supply Low Operation Temperature

Name: Aluminum 250W Switching Waterproof Power Supply Low Operation Temperature
Brand: Winston/OEM
Price: 1 USD

Buy cheap Aluminum 250W Switching Waterproof Power Supply Low Operation Temperature product

Brand Name : Winston/OEM

Model Number : LPV-250

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Warranty : 2 Years

OEM : YES

ODM : YES

Dimensions : 233*122*60mm

Condition : Original New

Output Voltage : 12VDC 24VDC 36VDC 48VDC

Output Power : 250W

Input Voltage : 180~264VAC

Output Type : Single

Case material : Aluminum

Contact Now

Aluminum 250W Switching Waterproof Power Supply Low Operation Temperature

Features:

1. Low-cost, high reliability

2. Coolong by free air convection

3. 100% full load burn-in test

4. Globally applicable AC input power

Specification:

Model		LPV-250-12	LPV-250-24	LPV-250-36	LPV-250-48
output	DC voltage	12V	24V	36V	48V
	Voltage tolerance	±1%	±1%	±1%	±1%
	Rated current	20A	10A	7A	5A
	Current range	0~20A	0~10A	0~7A	0~5A
	Rated power	240W	240W	252W	240W
	Ripple&noise	150mvp-p	200mvp-p	200mvp-p	240mvp-p
input	Voltage range	180~264VAC,255~373VDC
	Frequency	47~63HZ
	AC current	2.8A/230VAC
	Efficiency	82%	84%	85%	86%
	Inrush current	Cold start current 50A/230VAC
	Leakage current	<3.5mA/240VAC
protection	Over load	Rated output power 105%~135%start over load protection
		Protection type:hiccup mode,auto-recovery after fault condition is removed
	Over voltage	15.6~17.8V	30.6~33.2V	42.6~44.2V	54.8~56.6V
		Protection type:hiccup mode,auto-recovery after fault condition is removed
	Over temperature	Shell temp≥85°C,start over temperature protection
		Protection mode:cutoff output,auto-recovery after temperature become normal
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
	Storage temp.humidity	-20°C~+85°C,10%~95%RH non condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60minutes,each axes
safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fits	Safety standard	Fit UL1012,IP67 protect level

tandard	EMC standard	Fit EN55022,CLASSA
Others	Dimension	23512056mm (LWH)
	Weight/packing	2.55kg/9pcs/24kg/0.029 m⊃3;/1.04CUFT
Note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
	3. Tolerance : includes set up tolerance, line regulation and load regulation.

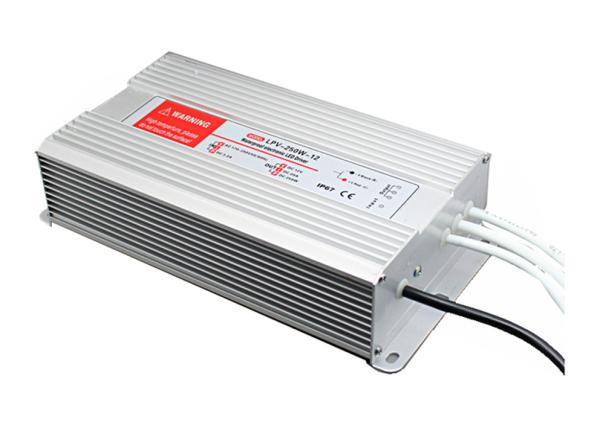

Product Picture

Aluminum 250W Switching Waterproof Power Supply Low Operation Temperature

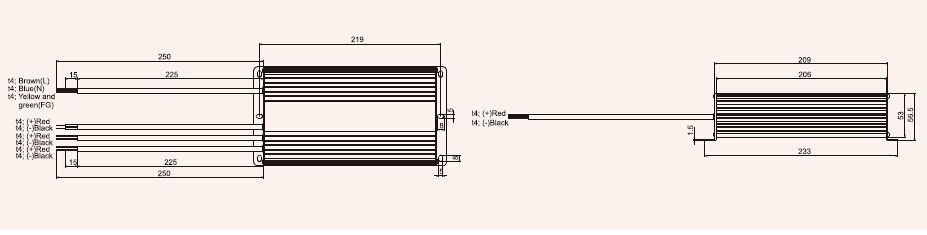

Dimension

Our Services

Customized Samples are acceptable
Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
Welcome and accept 100% customers factory inspection before the production
Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
We provide 7 days 24 hours service!

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
