Winston Dustproof Inductive Proximity Sensor IP67 , 3 Wire Proximity Switch PR12

Name: Winston Dustproof Inductive Proximity Sensor IP67 3 Wire Proximity Switch PR12
Brand: Winston/OEM
Price: 1 USD

Buy cheap Winston Dustproof Inductive Proximity Sensor IP67 , 3 Wire Proximity Switch PR12 product

Brand Name : Winston/OEM

Model Number : PR12

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

OEM : YES

ODM : YES

Aviation connector : YES

Output state : NO/NC/NO+NC

Condition : Original new

Protection grade : IP67

Material : Metal

Insulation resistance : 50MΩ

Wording temperature : -25℃~+65℃

DC/AD : 200Hz/10Hz

Repeated precision : 0.5

Contact Now

Winston Dustproof Inductive Proximity Sensor IP67 , 3 Wire Proximity Switch PR12

Technique parameter

Dimension				M12
Mounting way				Non-screen shield
Type	DC type	NPN	NO	PR12-4DN
			NC	PR12-4DN2
			NO+NC
		PNP	NO	PR12-4DP
			NC	PR12-4DP2
			NO+NC
		Two wire	NO	PR12-4DO
			NC	PR12-4DC
	AC type	Two wire	NO	PR12-4AO
			NC	PR12-4AC
		Three wire	NO+NC
Dectection distance				4mm±10%
Set distance				0~3.2mm
Standard detection object				iron 15151mm
Response frequency				DC 0.5kHz AC:25Hz

Consumption current	N.P Type: < 13mA ; DC type: <0.8mA; AC type: <1.7mA
Power supply	DC type: DC12-24V AC type:AC110-220V
Response frequency	DC: 0.5kHz AC:25Hz
Ambient temperature	-25 ~+65
Insulation resistance	≥ 50MΩ
Protection grade	IP67

Features:

1 . Improved the noise resistance with dedicated IC
2 . Built-in reverse polarity protection circuit (DC 3-wire type)
3 . Built-in overcurrent protection circuit(DC type)
4 . Long life cycle and high reliability, and simple operation
5 . Replaceable for micro switches and limit switches

Model explanation of proximity switch

LM 18 30 05 N A □ / L
—— —— - —— —— —— —— —— ——
1 2 3 4 5 6 7 8

Switch category	Output form
Lm: Inductance type Cm: Capacitance type Sm: Hall type Am: Safety Explosion-proof type Xm: Mimic Linear type Hm: Reed type Ru: Ultrasonic type	N: Three-wire Dc NpN Output P: Three-wire Dc PnP Output L: Two-wire Dc Output : Ac Two-wire Output J: Relay Contact Output Np: NpN+PnP Double Output
Outward appearance code	Output state
□: Cylinder type F□: Angular Colum Type And Plane Installation Type	A: (no) normally Open (no) B: (nc) Normally Close (nc) C: (no-nc) normally Open-Normally Close (no+nc) Mu: Mimic Voltage Mi: Mimic Current Mui: Voltage+Current
Working voltage	Subsidiart functions
30: 6-36VDC 310:5-24VDC 320:12-60VDC 330: 10-30VDC 340:10-55VDC 350:10-60VDC 360: 5-36VDC 20:90-250VAC 210:24-250VAC 220: 380VAC40:12-240VDC/24-240AC 50: Special voltage	T: with aviation connector Y: water proof,oil proof I: special requirement H: high temp resistance R: ring type
Detection distance	Long-distance
01: 1mm 05: 5mm 10: 10mm ......	L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.
Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1 . Spacing detection
2 . Stopper detection of grinding machine
3 . Bottle lid detection

4 . Various location detection of machinery process center

5 . Arm location detection of robot

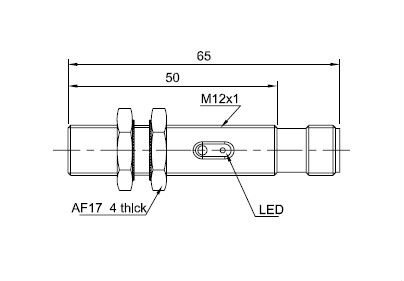

Dimension
Winston Dustproof Inductive Proximity Sensor IP67 , 3 Wire Proximity Switch PR12

Product Picture

FAQ

Q: How to order our product ?

A:1). Please tell us the model and quantity and other request you need.

2). We make the PI for you.

3). After you confirm the PI, we arrange the order for you after receiving your payment.

4). After the goods finished, we send the goods out to you and tell you the tracking number.

5). We will track your goods until you receive the goods.

Q: What's your warranty ?

A: Two years

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.

Q: What's about MOQ?

A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C.

Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by Maoyt or send us by email, we will reply within 24hrs.
