55A Switching Power Supply NES - 200 W Overload Protection 0.93kg

Product Categories
YUEQING WINSTON ELECTRIC CO.,LTD.
Contact Now

55A Switching Power Supply NES - 200 W Overload Protection 0.93kg

Brand Name : Winston/OEM

Model Number : NES-200W

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : USD18.26

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Warranty : 2 Years

OEM : YES

ODM : YES

Condition : Original New

Weight : 0.93KG

Working temperature : -10℃~+50℃

Impact current : 55A / 230VAC 40A/115VAC

Frequency : 47-63Hz

Contact Now

Single Output 55A Switching Power Supply NES - 200 W Overload Protection 0.93kg


Summary

  • Single output: power 200w
  • Input voltage: 90-132VAC/180-264VAC by switch



Technique parameter:


     ModelNES-200-5NES-200-12NES-200-15NES-200-24NES-200-27NES-200-36NES-200-48
DC output voltage current5V 0-40A12V 0-17A15V 0-14A24V 0-8.8A27V 0-7.8A36V 0-5.9A48V 0-4.4A
Wave and noise150mVp-p150mVp-p150mVp-p150mVp-p200mVp-p240mVp-p240mVp-p
Inlet stability±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%
Load stablity ±1%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%
Efficiency78%83%84%86%86%86%86%
Adjustable range for DC voltage±10%±10%±10%±10%±10%±10%±10%
Overload proctection105%-160% cut off the output, automatic recovery
Over-voltage protection115%-135% shut down O/P voltage, re-power on to recover
Setup rise hold up time800ms, 60ms, 50ms/230vac at full load
Withstand voltage

I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

Isolation resistanceI/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
Dimension215*115*50mm
Packing48*31.5*26cm/20PCS/19kg


The use of power supply

1 . Use the power of money make sure the input voltage specification (110 v / 220 v / 380 v) and going to install and use the power of the input voltage of nominal value.Domestic use products, the main input 220 VAC, so have a selection of 110 V / 220 V, under normal circumstances, the selector switch in the 220 VAC, please pay more attention to customers to use.

2 . In strict accordance with the drawings standard connection, check whether the input and output wires is correct before electricity, so as not to damage the user equipment.


PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.



Product Picture

55A Switching Power Supply NES - 200 W Overload Protection 0.93kg

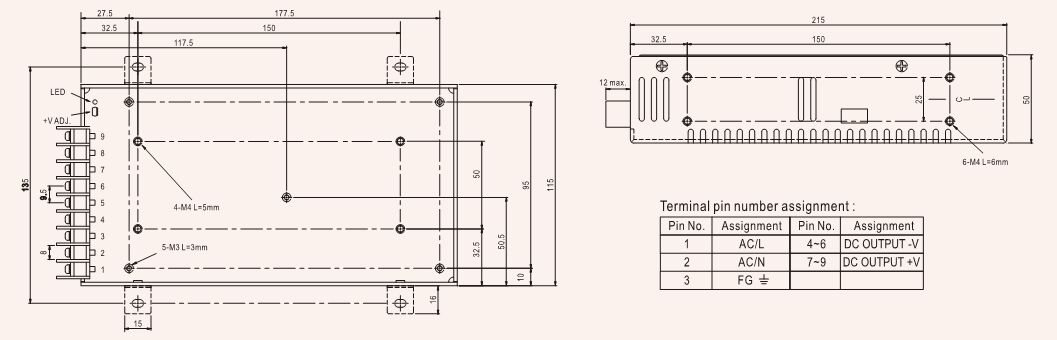

Dimensions

55A Switching Power Supply NES - 200 W Overload Protection 0.93kg
