25A Cold Start Current Switching Power Supply Overload Protection S - 600w

  • 1
  • 2
  • 3

Brand Name : Winston/OEM

Model Number : S-600W

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : USD50.6

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Warranty : 2 Years

OEM : YES

ODM : YES

Condition : Original New

Weight : 1.5KG

Working temperature : -10℃~+50℃

Input voltage range : 90-132VAC/180-264VAC

Contact Now

25A Cold Start Current Switching Power Supply Overload Protection S - 600w


Summary

  • Single output: power 600w



Technique parameter:


     Model S-600-12 S-600-24 S-600-36 S-600-48
DC output voltage current 12V 0-50A 24V 0-250A 36V 0-16.7A 48V 0-12.5A
Wave and noise 100mVp-p 150mVp-p 150mVp-p 150mVp-p
Inlet stability ±0.5% ±0.5% ±0.5% ±0.5%
Load stablity ±0.5% ±0.5% ±0.5% ±0.5%
Efficiency 83% 85% 86% 87%
Adjustable range for DC voltage ±10% ±10% ±10% ±10%
input voltage range 90-132VAC/180-264VAC by switch 254-370vdc  47-63Hz
Inpact current Cold start current 50A/230VAC 25A/115VAC
Overload proctection 105%-300% cut off the output, automatic recovery
Over-voltage protection 115%-140% shut down O/P voltage, re-power on to recover
Setup rise hold up time 1000ms, 50ms, 16ms/230vac at full load
Withstand voltage

I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistance I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
Working temperature -10℃~+50℃
Dimension 247*127*63.5cm
Packing 44*26*27cm/12PCS/18kg



The use of power supply

1 . Use the power of money make sure the input voltage specification (110 v / 220 v / 380 v) and going to install and use the power of the input voltage of nominal value.Domestic use products, the main input 220 VAC, so have a selection of 110 V / 220 V, under normal circumstances, the selector switch in the 220 VAC, please pay more attention to customers to use.

2 . In strict accordance with the drawings standard connection, check whether the input and output wires is correct before electricity, so as not to damage the user equipment.


PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

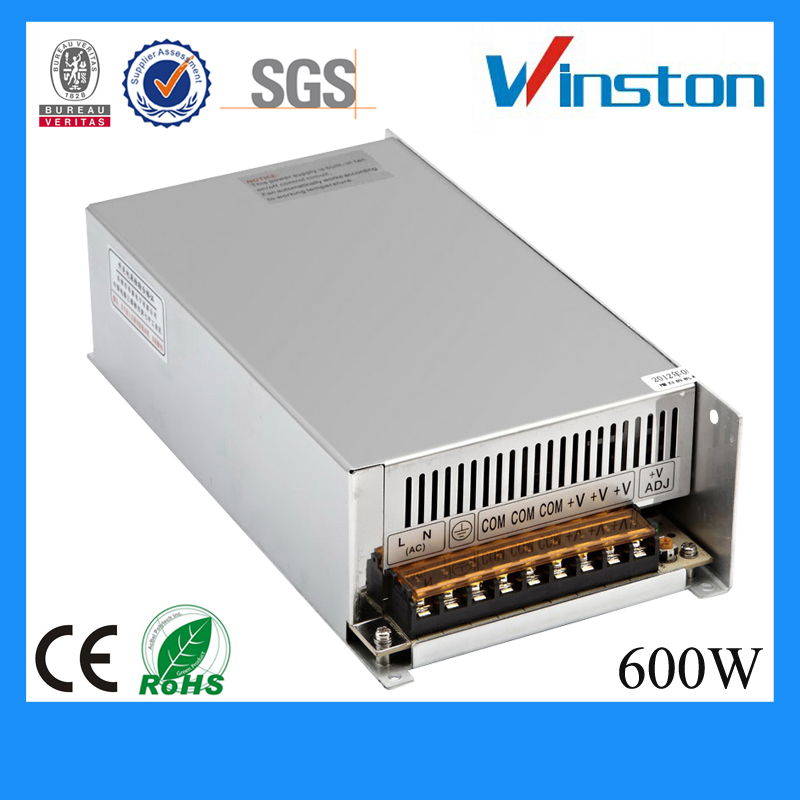

Product Picture

25A Cold Start Current Switching Power Supply Overload Protection S - 600w

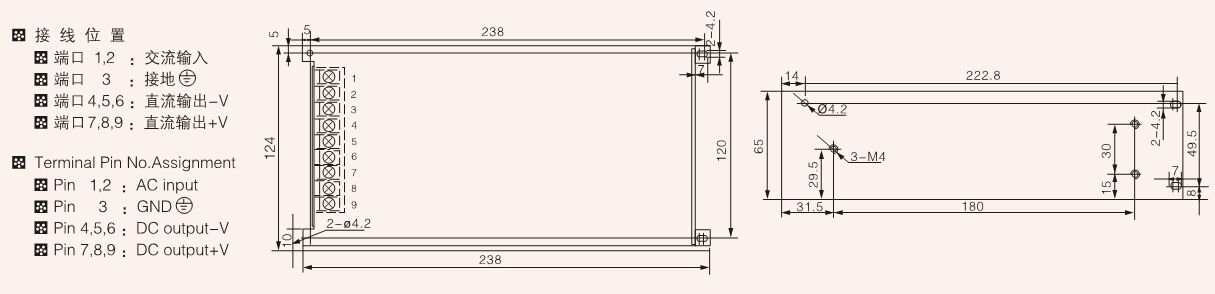

Dimensions

25A Cold Start Current Switching Power Supply Overload Protection S - 600w

About us

25A Cold Start Current Switching Power Supply Overload Protection S - 600w
