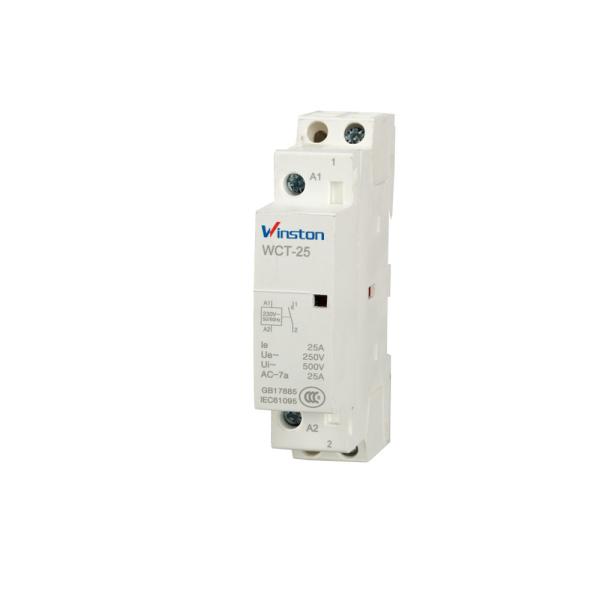

Modular Homes 1NO Telecommunication 25A single Phase AC Contactor

Name: Modular Homes 1NO Telecommunication 25A single Phase AC Contactor
Brand: Winston/OEM
Price: 2.93 USD

Buy cheap Modular Homes 1NO Telecommunication 25A single Phase AC Contactor product

Brand Name : Winston/OEM

Model Number : WCT 25A 1P 1NO

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : USD2.93 to USD5.93

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Rating Voltage : 400V

Phase : 1

OEM : Yes

Degree of protection : IP20

Frequency : 50Hz/60Hz

Main Circuit Rating Current : 15 VA

Electrical life : 50000h

Rated current : 25A

Machnical life : 100000h

Contact Now

Modular Homes 1NO Telecommunication 25A single Phase AC Contactor

Product description

WCT series household AC contactors are suitable for controlling household appliances & similar usages low micro-load, also controlling household motors loading, whose controlling power shall be reduced, The products are used for family , hotel , apartment etc. places, And, it can be realized automatic function.

Technical data

Power circuit
Voltage Rating(Ue) 1P, 2P		250VAC
3P, 4P		400VAC
Endurance(O-C)
Electrical		100000 cycles
Maximum number of switching operation a day		100
Additional characteristics
Insulation voltage(Ui)		500VAC
Pollution degree		2
Rated impulse withstand voltage(Uimp)		2.5kV(4 kV for 12/24/48V AC)
Degree of protection (IEC 60529)	Device only	IP20
	Device in modular enclosure	IP40
Tropicalization (IEC 60068-1)		Treatment 2(relative humidity 95% at 55℃)

WCT contactors-50Hz
	Raring(In)	Control voltage(V AC)(50Hz)	Consumption		Max. power
	AC7a		Holding	Inrush
1P	25 A	220	3.8 VA	15 VA	1.3 W
		230…240	3.8 VA	9.2 VA	1.2 W

Attention

1. Confirm whether the product voltage, current, frequency and use category meet the requirements before use;

2. Connect the control circuit first for no-load operation test and then connect the load in case of no abnormality;

3. Regularly tighten the terminals and remove the deposited dust;

4. Don't make the foreign matters fall into the product

Dimension

Modular Homes 1NO Telecommunication 25A single Phase AC Contactor

Detail

Operation
