Plastil PNP Inductive Proximity Sensor For Bottle Lid / Robot Arm Location Detection

Name: Plastil PNP Inductive Proximity Sensor For Bottle Lid Robot Arm Location Detection
Brand: Winston/OEM
Price: 1 USD

Buy cheap Plastil PNP Inductive Proximity Sensor For Bottle Lid / Robot Arm Location Detection product

Brand Name : Winston/OEM

Model Number : LMF45

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Standard detected object : A3 iron

OEM : YES

ODM : YES

Aviation connector : YES

Repeated precision : 0.5

Output state : NO/NC/NO+NC

Protection degree : IP 67

Condition : Original new

Insulation resistance : 50MΩ

Working environment temperature : -25℃—+70℃

DC/AC : 200Hz/5Hz

Material : Plastil

Contact Now

Plastil PNP Inductive Proximity Sensor For Bottle Lid / Robot Arm Location Detection

Technique parameter

Model NO.	Detection distance	Detection distance	Output		Response frequency	Flush
Model NO.	Detection distance	Detection distance	Form	State	Response frequency	Flush
LMF45-3050NA	0 -50mm	DC6-36V	NPN	NO	200Hz	Non-flush
LMF45-3050NB	0 -50mm	DC6-36V	NPN	NC	200Hz	Non-flush
LMF45-3050NC	0 -50mm	DC6-36V	NPN	NO+NC	200Hz	Non-flush
LMF45-3050PA	0 -50mm	DC6-36V	PNP	NO	200Hz	Non-flush
LMF45-3050PB	0 -50mm	DC6-36V	PNP	NC	200Hz	Non-flush
LMF45-3050PC	0 -50mm	DC6-36V	PNP	NO+NC	200Hz	Non-flush
LMF45-3050LA	0 -50mm	DC6-36V	Two wire system	NO	200Hz	Non-flush
LMF45 -3050LB	0 -50mm	DC6-36V	Two wire system	NC	200Hz	Non-flush
LMF45 -2050A	0 -50mm	AC90-250V	SCR Control label silicon	NO	5Hz	Non-flush
LMF45-2050B	0 -50mm	AC90-250V	SCR Control label silicon	NC	5Hz	Non-flush

Features:

1 . Compact volume

2 . High precision of repeated location
3 . High on-off frequency.
4 . Wide voltage range
5 . Dust proof, vibration proof, water proof and oil proof

6 . Good performance of anti-interference.

7 . Many output forms

Model explanation of proximity switch

LM 18 30 05 N A □ / L
—— —— - —— —— —— —— —— ——
1 2 3 4 5 6 7 8

Switch category	Output form
Lm: Inductance type Cm: Capacitance type Sm: Hall type Am: Safety Explosion-proof type Xm: Mimic Linear type Hm: Reed type Ru: Ultrasonic type	N: Three-wire Dc NpN Output P: Three-wire Dc PnP Output L: Two-wire Dc Output : Ac Two-wire Output J: Relay Contact Output Np: NpN+PnP Double Output
Outward appearance code	Output state
□: Cylinder type F□: Angular Colum Type And Plane Installation Type	A: (no) normally Open (no) B: (nc) Normally Close (nc) C: (no-nc) normally Open-Normally Close (no+nc) Mu: Mimic Voltage Mi: Mimic Current Mui: Voltage+Current
Working voltage	Subsidiart functions
30: 6-36VDC 310:5-24VDC 320:12-60VDC 330: 10-30VDC 340:10-55VDC 350:10-60VDC 360: 5-36VDC 20:90-250VAC 210:24-250VAC 220: 380VAC40:12-240VDC/24-240AC 50: Special voltage	T: with aviation connector Y: water proof,oil proof I: special requirement H: high temp resistance R: ring type
Detection distance	Long-distance
01: 1mm 05: 5mm 10: 10mm ......	L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.
Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1 . Various location detection of machinery process center
2 . Arm location detection of robot
3 . Inspection of the exiating of milk inside the paper package
4 . Stopper detection of grinding machine

5 . Bottle lid detection

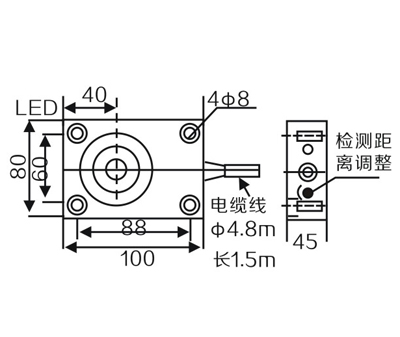

Dimension

Plastil PNP Inductive Proximity Sensor For Bottle Lid / Robot Arm Location Detection
Product Picture

Our Services

Customized Samples are acceptable
Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
Welcome and accept 100% customers factory inspection before the production
Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
We provide 7 days 24 hours service!
