LMF21 Dustproof Inductive Proximity Sensor Angular Column Type Straight Connector

Name: LMF21 Dustproof Inductive Proximity Sensor Angular Column Type Straight Connector
Brand: Winston/OEM
Price: 1 USD

Buy cheap LMF21 Dustproof Inductive Proximity Sensor Angular Column Type Straight Connector product

Brand Name : Winston/OEM

Model Number : LMF21

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Standard detected object : A3 iron

OEM : YES

ODM : YES

Aviation connector : YES

Repeated precision : 0.01

Output state : NO/NC/NO+NC

Protection degree : IP 67

Condition : Original new

Insulation resistance : 50MΩ

Working environment temperature : -25℃—+70℃

DC/AC : 500Hz/5Hz

Shell material : ABS Resin

Contact Now

LMF21 Dustproof Inductive Proximity Sensor Angular Column Type Straight Connector

Technique parameter

DETECTION DISTANCE
Flush	DC 10-30V	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		two wire system	NO
			NC
	AC 90-250V	SCR Control-lable silicon	NO
			NC
			NO+NC
		Relay output
	DETECTION DISTANCE 4MM
Non-Flush	DC 10-30V	NPN	NO	LMF21-3004NA
			NC	LMF21-3004NB
			NO+NC	LMF21-3004NC
		PNP	NO	LMF21-3004PA
			NC	LMF21-3004PB
			NO+NC	LMF21-3004PC
		two wire system	NO	LMF21-3004LA
			NC	LMF21-3004LB
	AC 90-250V	SCR Control-lable silicon	NO
			NC
			NO+NC
		Relay output
Controloutput		DC		200mA
		SCR/ Relay
Output voltagc dropDC/AC				NPN/PNP< 3V, Two wire< 3.9V, AC< 10V
Consumption current				DC< 15mA, AC< 10mA
Standard detected object				12121(A3 iron)
Repeated precision				0.01
DC/AC				500HZ/5HZ
Working environment temperature				-25~+70º C
Insulation resistance				50MΩ
Shell material				ABS Resin
Protection grade				IP67
Altemative model at home and abroad

Features:

1 . High precision of repeated location

2 . Diversified exterior structures
3 . High on-off frequency.
4 . Wide voltage range
5 . Dust proof, vibration proof, water proof and oil proof

Model explanation of proximity switch

LM 18 30 05 N A □ / L

—— —— - —— —— —— —— —— ——

1 2 3 4 5 6 7 8

Switch category	Output form
Lm: Inductance type Cm: Capacitance type Sm: Hall type Am: Safety Explosion-proof type Xm: Mimic Linear type Hm: Reed type Ru: Ultrasonic type	N: Three-wire Dc NpN Output P: Three-wire Dc PnP Output L: Two-wire Dc Output : Ac Two-wire Output J: Relay Contact Output Np: NpN+PnP Double Output
Outward appearance code	Output state
□: Cylinder type F□: Angular Colum Type And Plane Installation Type	A: (no) normally Open (no) B: (nc) Normally Close (nc) C: (no-nc) normally Open-Normally Close (no+nc) Mu: Mimic Voltage Mi: Mimic Current Mui: Voltage+Current
Working voltage	Subsidiart functions
30: 6-36VDC 310:5-24VDC 320:12-60VDC 330: 10-30VDC 340:10-55VDC 350:10-60VDC 360: 5-36VDC 20:90-250VAC 210:24-250VAC 220: 380VAC40:12-240VDC/24-240AC 50: Special voltage	T: with aviation connector Y: water proof,oil proof I: special requirement H: high temp resistance R: ring type
Detection distance	Long-distance
01: 1mm 05: 5mm 10: 10mm ......	L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1 . Stopper detection of grinding machine

2 . Gusrd of switch lead-wire

3 . Various location detection of machinery process center

4 . Arm location detection of robot

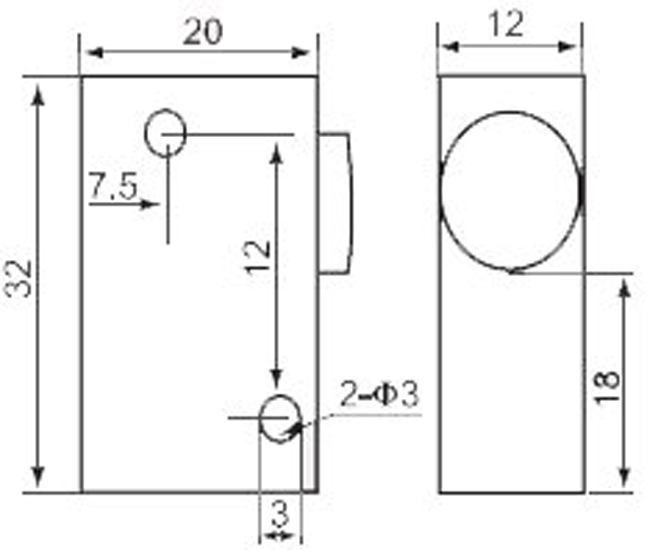

Dimension

LMF21 Dustproof Inductive Proximity Sensor Angular Column Type Straight Connector

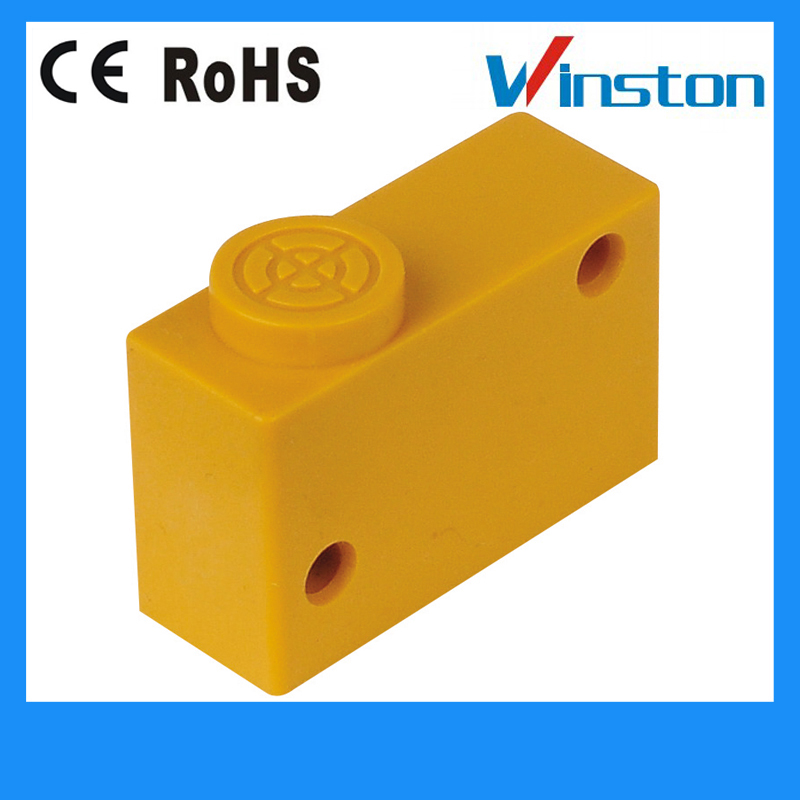

Product Picture

LMF21 Dustproof Inductive Proximity Sensor Angular Column Type Straight Connector

About Order

Important Information about sensor Conditions

1. All of the sensor are brand new, top quality components: absolutely no used items or counterfeits.

2. The pictures are for reference only. Exact specifications should be obtained from the datasheet.

3. Prices, specifications, and availability of all items are subject to change without notice.

4. We are not responsible for typographical errors.

Payment Terms

- We accept payments made by Western Union,TT,PayPal.

- Since you made the payment successfully, you can send us the Reference NO or MTCN.

Shipping

1. We will ship the items within 5 working days after the payment is reached.

2. We ship to you by Express.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. Any import fees or charges are the buyer's responsibility.
