LMF36 Angular Column Inductive Proximity Switch , Detection Distance Proximity Sensor

Name: LMF36 Angular Column Inductive Proximity Switch Detection Distance Proximity Sensor
Brand: Winston/OEM
Price: 1 USD

Buy cheap LMF36 Angular Column Inductive Proximity Switch , Detection Distance Proximity Sensor product

Brand Name : Winston/OEM

Model Number : LMF36

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Standard detected object : A3 iron

OEM : YES

ODM : YES

Aviation connector : YES

Repeated precision : 0.2

Output state : NO/NC/NO+NC

Protection degree : IP 67

Condition : Original new

Insulation resistance : 50MΩ

Working environment temperature : -25℃—+70℃

DC/AC : 500Hz/15Hz

Shell material : ABS Resin

Contact Now

LMF36 Angular Column Inductive Proximity Switch , Detection Distance Proximity Sensor

Technique parameter

Features:

1 . High precision of repeated location
2 . Diversified exterior structures
3 . High on-off frequency.
4 . Wide voltage range
5 . Dust proof, vibration proof, water proof and oil proof

6 . Compact volume

7 . Long service life

Model explanation of proximity switch

LM 18 30 05 N A □ / L
—— —— - —— —— —— —— —— ——
1 2 3 4 5 6 7 8

Switch category	Output form
Lm: Inductance type Cm: Capacitance type Sm: Hall type Am: Safety Explosion-proof type Xm: Mimic Linear type Hm: Reed type Ru: Ultrasonic type	N: Three-wire Dc NpN Output P: Three-wire Dc PnP Output L: Two-wire Dc Output : Ac Two-wire Output J: Relay Contact Output Np: NpN+PnP Double Output
Outward appearance code	Output state
□: Cylinder type F□: Angular Colum Type And Plane Installation Type	A: (no) normally Open (no) B: (nc) Normally Close (nc) C: (no-nc) normally Open-Normally Close (no+nc) Mu: Mimic Voltage Mi: Mimic Current Mui: Voltage+Current
Working voltage	Subsidiart functions
30: 6-36VDC 310:5-24VDC 320:12-60VDC 330: 10-30VDC 340:10-55VDC 350:10-60VDC 360: 5-36VDC 20:90-250VAC 210:24-250VAC 220: 380VAC40:12-240VDC/24-240AC 50: Special voltage	T: with aviation connector Y: water proof,oil proof I: special requirement H: high temp resistance R: ring type
Detection distance	Long-distance
01: 1mm 05: 5mm 10: 10mm ......	L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.
Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1 . Stopper detection of grinding machine
2 . Gusrd of switch lead-wire
3 . Various location detection of machinery process center
4 . Arm location detection of robot
5 . Inspection of the exiating of milk inside the paper package
6 . Spacing detection

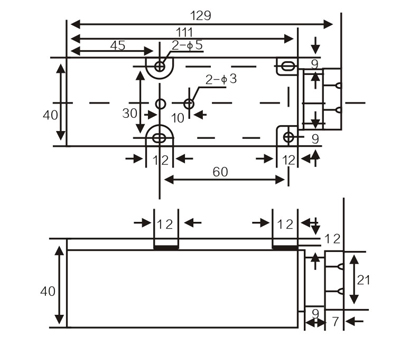

Dimension

LMF36 Angular Column Inductive Proximity Switch , Detection Distance Proximity Sensor

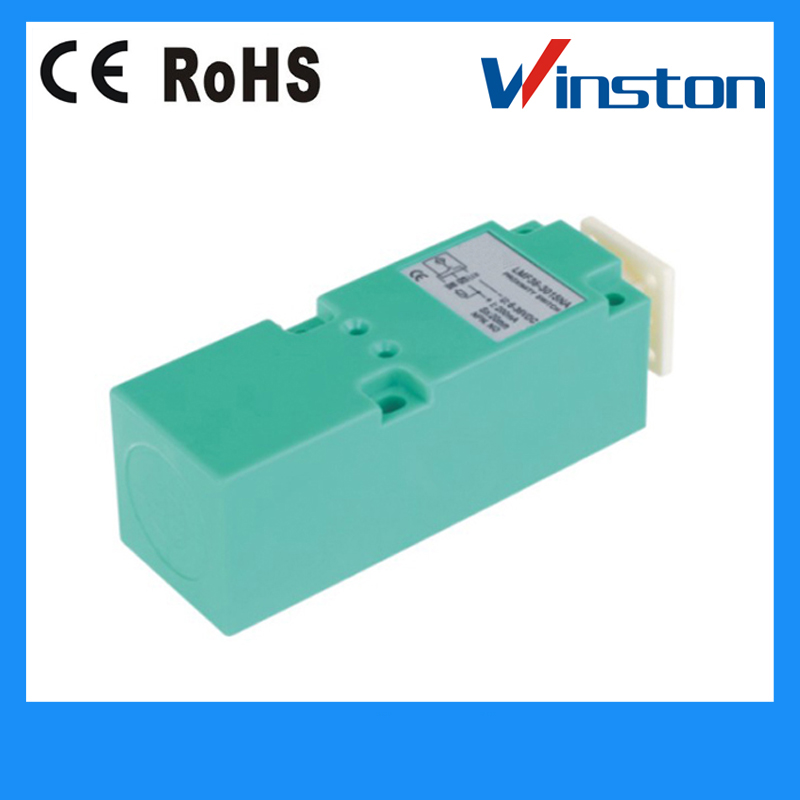

Product Picture

Q 1. what's the payment term?

A . We accept TT,30% deposit and 70% balance agaisnt copy of BL

Q 2. how's the delivery time ?

A . usually it will take about 15 days for production

Q 3. tell me the standard of package?

A. Export standard carton box

Q 4. Could you offer Form A or C/O ?

A . It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q 5. Would you accept to use our logo ?

A . If you have good quantity,it absolute no problem to do OEM.

Q 6. We want to know month capacity.

A . It depends on which model.For example for M12 type normal type, month capacity can reach near 20000pcs.

Q 7. Where is your market?

A . Our products are popular in Russia, Indonisia, Philippines,Italy, America, Brazil and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
