LMF6 Angular Column Type Position Proximity Switch Inductive NO / NC Screw Mounting

Brand Name : Winston/OEM

Model Number : LMF6

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Standard detected object : A3 iron

DC/AC : 200Hz/10Hz

OEM : YES

ODM : YES

Aviation connector : YES

Repeated precision : 0.05

Output state : NO/NC/NO+NC

Protection degree : IP 67

Shell Material : ABS Resin

Condition : Original new

Insulation resistance : 50MΩ

Working environment temperature : -25℃—+75℃

Contact Now

LMF6  Angular Column Type Position Proximity Switch Inductive NO / NC  Screw Mounting​

Technique parameter



DETECTION DISTANCE            8MM
Flush DC 10-30V NPN NO LMF6-3008NA
NC LMF6-3008NB
NO+NC LMF6-3008NC
PNP NO LMF6-3008PA
NC LMF6-3008PB
NO+NC LMF6-3008PC
two wire system NO LMF6-3008LA
NC LMF6-3008LB
AC 90-250V SCR Control-lable silicon NO LMF6-2008A
NC LMF6-2008B
NO+NC
Relay output
  DETECTION DISTANCE                                10MM
Non-Flush DC 10-30V NPN NO LMF6-3010NA
NC LMF6-3010NB
NO+NC LMF6-3010NC
PNP NO LMF6-3010PA
NC LMF6-3010PB
NO+NC LMF6-3010PC
two wire system NO LMF6-3010LA
NC LMF6-3010LB
AC 90-250V SCR Control-lable silicon NO LMF6-2010A
NC LMF6-2010B
NO+NC
Relay output
Controloutput DC 200mA
SCR/ Relay 300mA
Output voltagc dropDC/AC NPN/PNP< 3V, Two wire< 3.9V, AC< 10V
Consumption current DC< 15mA, AC< 10mA
Standard detected object 30*30*1(A3 iron)
Repeated precision 0.05
DC/AC 200HZ/10HZ
Working environment temperature -25~+70º C
Insulation resistance 50MΩ
Shell material ABS Resin
Protection grade IP67
Altemative model at home and abroad TL-N5ME






Features:

1 . high precision of repeated location
2 . Diversified exterior structures
3 . Good performance of anti-interference
4 . Many output forms
5 . With short-circuit protection and inverted connecting protection.
6 . Compact volume


Model explanation of proximity switch



 LM      18         30      05      N       A       □      /    L

——   ——  -  ——  ——  ——  ——  ——      ——

  1         2           3        4        5        6       7           8





Switch category Output form



Lm: Inductance type

Cm: Capacitance type

Sm: Hall type

Am: Safety Explosion-proof type

Xm: Mimic Linear type

Hm: Reed type

Ru: Ultrasonic type



N: Three-wire Dc NpN Output

P: Three-wire Dc PnP Output

L: Two-wire Dc Output

  : Ac Two-wire Output

J: Relay Contact Output

Np: NpN+PnP Double Output
Outward appearance code Output state



□: Cylinder type

F□: Angular Colum Type And Plane Installation Type





A: (no) normally Open (no)

B: (nc) Normally Close (nc)

C: (no-nc) normally Open-Normally Close (no+nc)

Mu: Mimic Voltage

Mi: Mimic Current

Mui: Voltage+Current


Working voltage Subsidiart functions



30: 6-36VDC  310:5-24VDC  320:12-60VDC

330: 10-30VDC  340:10-55VDC  350:10-60VDC

360: 5-36VDC  20:90-250VAC  210:24-250VAC

220: 380VAC40:12-240VDC/24-240AC

50: Special voltage



T: with aviation connector

Y: water proof,oil proof

I: special requirement

H: high temp resistance

R: ring type
Detection distance Long-distance



01: 1mm  05: 5mm  10: 10mm ......

 L: Long-distance





Working priciple inductive proximity switch



      Inductive proximity switch is composed of three parts: oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

     Current consumption of inductive proximity switch decreases proportional to the metal object distance.



Application illustration of proximity switch



1. Various location detection of machinery process center

2. Bottle lid detection

3. Stopper detection of grinding machine

4. Arm location detection of robot

5. Spacing detection

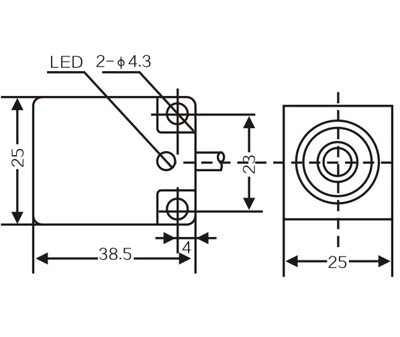

Dimension

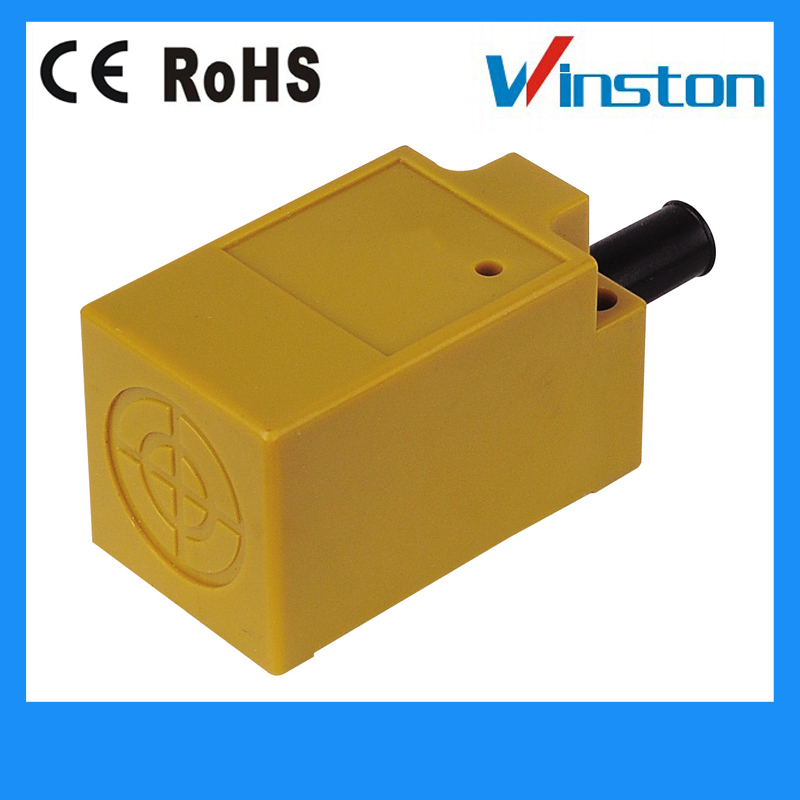

LMF6 Angular Column Type Position Proximity Switch Inductive NO / NC Screw Mounting
