LM06 Cylinder Proximity Switch Inductive Vibtation Proof , Inductive Linear Position Sensor

Name: LM06 Cylinder Proximity Switch Inductive Vibtation Proof Inductive Linear Position Sensor
Brand: Winston/OEM
Price: 1 USD

Buy cheap LM06 Cylinder Proximity Switch Inductive Vibtation Proof , Inductive Linear Position Sensor product

Brand Name : Winston/OEM

Model Number : LM06

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Usage : inductance proximity sensor switch, Automation Industry

Theory : Inductance Sensor, Inductance Sensor

Output : Analog Sensor, Switching Transducer

OEM : YES

ODM : YES

Aviation connector : yes

Quality grade : World class

Output state : NO,NC,NO_NC

Operating temperature : -25 ~ +75 ℃

Protection degree : IP 67

Shell Material : Stainless steel

Insulation resistance : ≥30MΩ

Contact Now

LM06 Cylinder Proximity Switch Inductive Vibtation Proof , Inductive Linear Position Sensor

Technique parameter

Flush	Detection distance			1mm
	DC 6~ 36 VDC	NPN	NO	LM6-3001NA
			NC	LM6-3001NB
		PNP	NO	LM6-3001PA
			NC	LM6-3001PB
		Two wire system	NO	LM6-3001LA
			NC	LM6-3001LB
	AC 90~ 250 VAC	Controllable silicon	NO	LM6-2001A
			NC	LM6-2001B
Non-flush	Detection distance			1.5mm
	DC 6~ 36 VDC	NPN	NO	LM6-3002NA
			NC	LM6-3002NB
		PNP	NO	LM6-3002PA
			NC	LM6-3002PB
		Two wire system	NO	LM6-3002LA
			NC	LM6-3002LB
	AC 90~ 250 VAC	Controllable silicon	NO	LM6-2002A
			NC	LM6-2002B

Features:

1 . Compact volume
2 . high precision of repeated location
3 . Diversified exterior structures
4 . Many output forms
5 . High on-off frequency
6 . Dust proof,vibration proof,water proof and oil proof.
7 . Long service life

Model explanation of proximity switch

LM 18 30 05 N A □ / L

—— —— - —— —— —— —— —— ——

1 2 3 4 5 6 7 8

Switch category	Output form
Lm: Inductance type Cm: Capacitance type Sm: Hall type Am: Safety Explosion-proof type Xm: Mimic Linear type Hm: Reed type Ru: Ultrasonic type	N: Three-wire Dc NpN Output P: Three-wire Dc PnP Output L: Two-wire Dc Output : Ac Two-wire Output J: Relay Contact Output Np: NpN+PnP Double Output
Outward appearance code	Output state
□: Cylinder type F□: Angular Colum Type And Plane Installation Type	A: (no) normally Open (no) B: (nc) Normally Close (nc) C: (no-nc) normally Open-Normally Close (no+nc) Mu: Mimic Voltage Mi: Mimic Current Mui: Voltage+Current
Working voltage	Subsidiart functions
30: 6-36VDC 310:5-24VDC 320:12-60VDC 330: 10-30VDC 340:10-55VDC 350:10-60VDC 360: 5-36VDC 20:90-250VAC 210:24-250VAC 220: 380VAC40:12-240VDC/24-240AC 50: Special voltage	T: with aviation connector Y: water proof,oil proof I: special requirement H: high temp resistance R: ring type
Detection distance	Long-distance
01:1mm 05:5mm 10:10mm ......	L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1. Various location detection of machinery process center

2. Bottle lid detection

3. Stopper detection of grinding machine

4. Arm location detection of robot

5. Inspection of the exiating of milk inside the paper package

6. Spacing detection

7. Mounting non screw type pillar switch

8. Gusrd of switch lead-wire

Dimension

LM06 Cylinder Proximity Switch Inductive Vibtation Proof , Inductive Linear Position Sensor

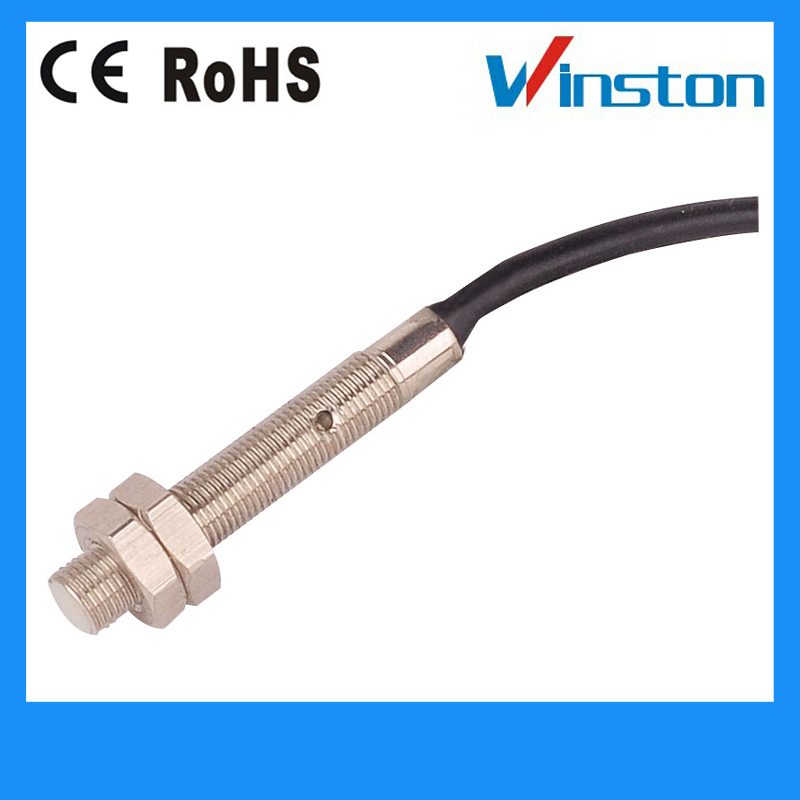

Product Picture

LM06 Cylinder Proximity Switch Inductive Vibtation Proof , Inductive Linear Position Sensor

FAQ

Q 1. what's the payment term?

A. We accept TT,30% deposit and 70% balance agaisnt copy of BL

Q 2. how's the delivery time ?

A. usually it will take about 15 days for production

Q 3. tell me the standard of package?

A. Export standard carton box

Q 4. Could you offer Form A or C/O ?

A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q 5. Would you accept to use our logo ?

A. If you have good quantity,it absolute no problem to do OEM.

Q 6. We want to know month capacity.

A. It depends on which model.For example for M12 type normal type, month capacity can reach near 20000pcs.

Q 7. Where is your market?

A. Our products are popular in Russia, Indonisia, Philippines,Italy, America, Brazil and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
