LM12-T Inductive Proximity Sensor , Cylinder Proximity Switch NO NC Compact Volume

Name: LM12T Inductive Proximity Sensor Cylinder Proximity Switch NO NC Compact Volume
Brand: Winston/OEM
Price: 1 USD

Buy cheap LM12-T Inductive Proximity Sensor , Cylinder Proximity Switch NO NC Compact Volume product

Brand Name : Winston/OEM

Model Number : LM12-T

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Usage : inductance proximity sensor switch, Automation Industry

Theory : Inductance Sensor, Inductance Sensor

Output : Analog Sensor, Switching Transducer

OEM : YES

ODM : YES

Aviation connector : yes

Quality grade : World class

Output state : NO,NC,NO_NC

Operating temperature : -30 ~ +70 ℃

Protection degree : IP 67

Contact Now

LM12-T Inductive Proximity Sensor , Cylinder Proximity Switch NO NC Compact Volume

Technique parameter

Model NO.	Detection distance	Working voltage	Output		Flush
Model NO.	Detection distance	Working voltage	Form	State	Flush
LM12-3002NAT	2mm	DC6-36V	NPN	NO	Flush
LM12-3002NBT	2mm	DC6-36V	NPN	NC	Flush
LM12-3002NCT	2mm	DC6-36V	NPN	NO+NC	Flush
LM12-3002PAT	2mm	DC6-36V	PNP	NO	Flush
LM12-3002PBT	2mm	DC6-36V	PNP	NC	Flush
LM12-3002PCT	2mm	DC6-36V	PNP	NO+NC	Flush
LM12-3002LAT	2mm	DC6-36V	Two wire system	NO	Flush
LM12-3002LBT	2mm	DC6-36V	Two wire system	NC	Flush
LM12-2002AT	2mm	AC90-250V	SCR Control label silicon	NO	Flush
LM12-2002BT	2mm	AC90-250V	SCR Control label silicon	NC	Flush
LM12-3004NAT	4mm	DC6-36V	NPN	NO	Non-flush
LM12-3004NBT	4mm	DC6-36V	NPN	NC	Non-flush
LM12-3004NCT	4mm	DC6-36V	NPN	NO+NC	Non-flush
LM12-3004PAT	4mm	DC6-36V	PNP	NO	Non-flush
LM12-3004PBT	4mm	DC6-36V	PNP	NC	Non-flush
LM12-3004PCT	4mm	DC6-36V	PNP	NO+NC	Non-flush
LM12-3004LAT	4mm	DC6-36V	Two wire system	NO	Non-flush
LM12-3004LBT	4mm	DC6-36V	Two wire system	NC	Non-flush
LM12-2004AT	4mm	AC90-250V	SCR Control label silicon	NO	Non-flush
LM12-2004BT	4mm	AC90-250V	SCR Control label silicon	NC	Non-flush

Features:

Compact volume, High on-off frequency

High precision of repeated location

Diversified exterior structures

Good performance of anti-interference

Many output forms, Wide voltage range

Dust proof, vibration proof, water proof and oil proof

With short-circuit protection and inverted

connecting protection

Long service life

Model explanation of proximity switch

LM 18 30 05 N A □ / L

—— —— - —— —— —— —— —— ——

1 2 3 4 5 6 7 8

Switch category	Output form
Lm: Inductance type Cm: Capacitance type Sm: Hall type Am: Safety Explosion-proof type Xm: Mimic Linear type Hm: Reed type Ru: Ultrasonic type	N: Three-wire Dc NpN Output P: Three-wire Dc PnP Output L: Two-wire Dc Output : Ac Two-wire Output J: Relay Contact Output Np: NpN+PnP Double Output
Outward appearance code	Output state
□: Cylinder type F□: Angular Colum Type And Plane Installation Type	A: (no) normally Open (no) B: (nc) Normally Close (nc) C: (no-nc) normally Open-Normally Close (no+nc) Mu: Mimic Voltage Mi: Mimic Current Mui: Voltage+Current
Working voltage	Subsidiart functions
30: 6-36VDC 310:5-24VDC 320:12-60VDC 330: 10-30VDC 340:10-55VDC 350:10-60VDC 360: 5-36VDC 20:90-250VAC 210:24-250VAC 220: 380VAC40:12-240VDC/24-240AC 50: Special voltage	T: with aviation connector Y: water proof,oil proof I: special requirement H: high temp resistance R: ring type
Detection distance	Long-distance
01:1mm 05:5mm 10:10mm ......	L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1. Various location detection of machinery process center

2. Bottle lid detection

3. Stopper detection of grinding machine

4. Arm location detection of robot

5. Inspection of the exiating of milk inside the paper package

6. Spacing detection

7. Mounting screw switch

8. Mounting non screw type pillar switch

Dimension

LM12-T Inductive Proximity Sensor , Cylinder Proximity Switch NO NC Compact Volume

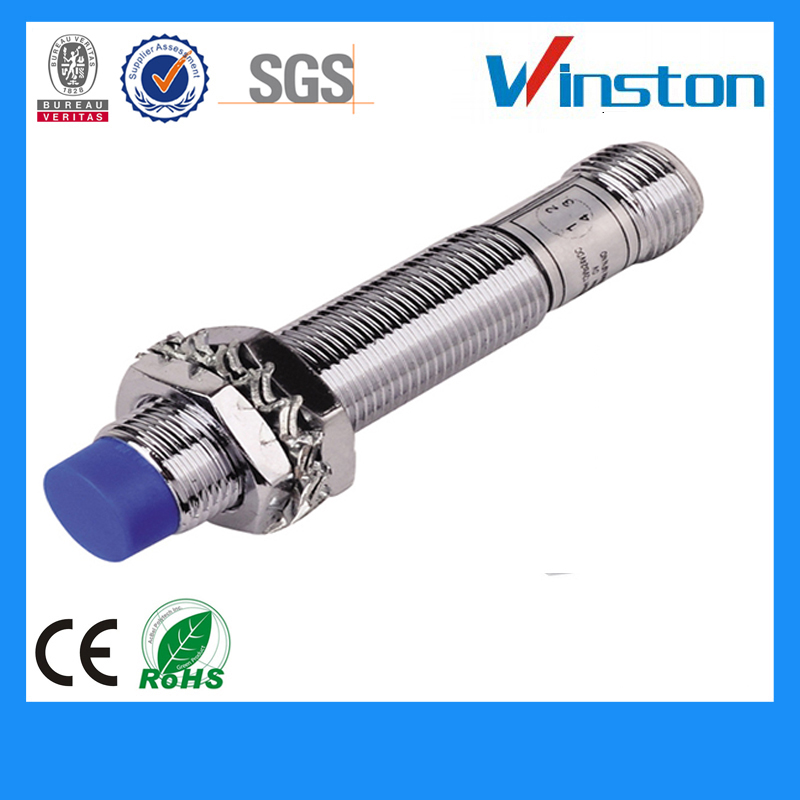

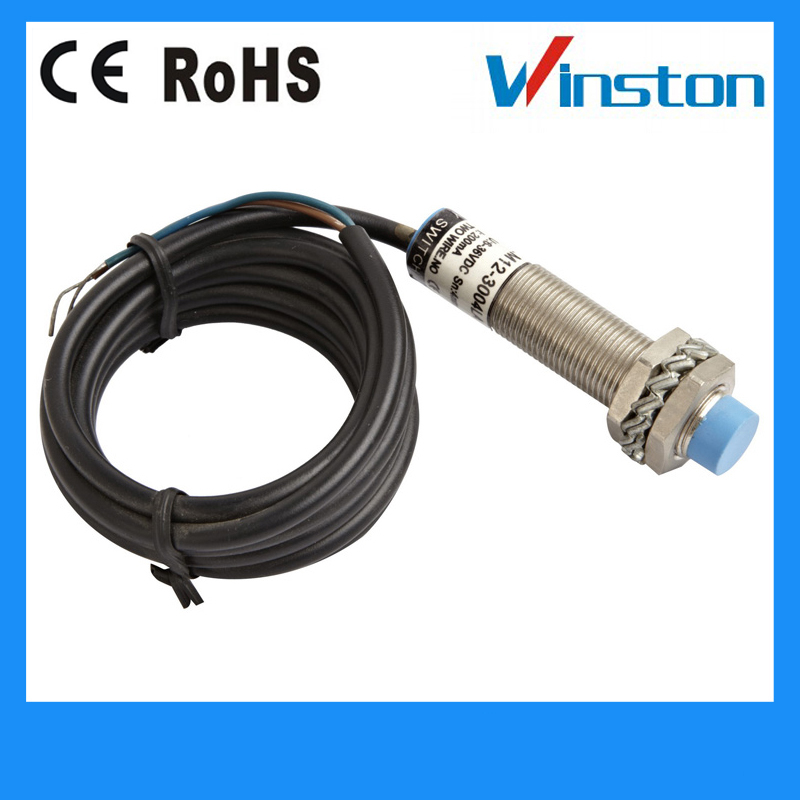

Product Picture

LM12-T Inductive Proximity Sensor , Cylinder Proximity Switch NO NC Compact Volume
