Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V - 30V CE

Name: Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V 30V CE
Brand: Winston/OEM
Price: 1 USD

Buy cheap Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V - 30V CE product

Brand Name : Winston/OEM

Model Number : LM35

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Repeated precision : 0.1

Standard detected object : A3 iron

DC/AC : 100Hz/15Hz

OEM : YES

ODM : YES

Aviation connector : yes

Quality grade : World class

Output state : NO,NC,NO_NC

Operating temperature : -25 ~ +75 ℃

Protection degree : IP 67

Shell Material : ABS Resin

Insulation resistance : 50MΩ

Contact Now

Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V - 30V CE

Technique parameter

Cylinder Type LM35 Inductive Proximity Switch	Flush	Detection Distance

		DC6-36V	NPN	NO

				NC

				NO+NC

			PNP	NO

				NC

				NO+NC

			Two Wire System	NO

				NC

		AC90-250V	Controllable Silicon	NO

				NC

				NO/NC

			Relay output

	Non-Flush	Detection Distance			17mm

		DC6-36V	NPN	NO	LM35-3017NA

				NC	LM35-3017NB

				NO+NC	LM35-3017NC

			PNP	NO	LM35-3017PA

				NC	LM35-3017PB

				NO+NC	LM35-3017PC

			Two Wire System	NO	LM35-3017LA

				NC	LM35-3017LB

		AC90-250V	Controllable Silicon	NO	LM35-2017A

				NC	LM35-2017B

				NO/NC	LM35-2017C

			Relay output

Features:

1 . Compact volume
2 . high precision of repeated location
3 . Diversified exterior structures
4 . Good performance of anti-interference
5 . Many output forms
6 . High on-off frequency
7 . With short-circuit protection and inverted connecting protection.

Model explanation of proximity switch

LM 18 30 05 N A □ / L

—— —— - —— —— —— —— —— ——

1 2 3 4 5 6 7 8

Switch category	Output form
Lm: Inductance type Cm: Capacitance type Sm: Hall type Am: Safety Explosion-proof type Xm: Mimic Linear type Hm: Reed type Ru: Ultrasonic type	N: Three-wire Dc NpN Output P: Three-wire Dc PnP Output L: Two-wire Dc Output : Ac Two-wire Output J: Relay Contact Output Np: NpN+PnP Double Output
Outward appearance code	Output state
□: Cylinder type F□: Angular Colum Type And Plane Installation Type	A: (no) normally Open (no) B: (nc) Normally Close (nc) C: (no-nc) normally Open-Normally Close (no+nc) Mu: Mimic Voltage Mi: Mimic Current Mui: Voltage+Current
Working voltage	Subsidiart functions
30: 6-36VDC 310:5-24VDC 320:12-60VDC 330: 10-30VDC 340:10-55VDC 350:10-60VDC 360: 5-36VDC 20:90-250VAC 210:24-250VAC 220: 380VAC40:12-240VDC/24-240AC 50: Special voltage	T: with aviation connector Y: water proof,oil proof I: special requirement H: high temp resistance R: ring type
Detection distance	Long-distance
01:1mm 05:5mm 10:10mm ......	L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1. Various location detection of machinery process center

2. Bottle lid detection

3. Stopper detection of grinding machine

4. Arm location detection of robot

5. Inspection of the exiating of milk inside the paper package

6. Spacing detection

7. Mounting screw switch

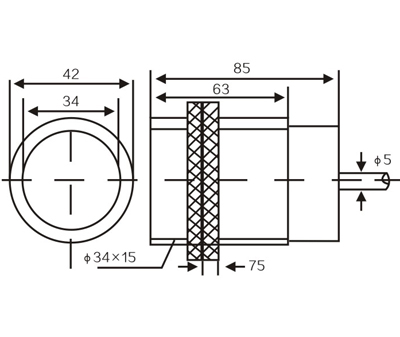

Dimension

Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V - 30V CE

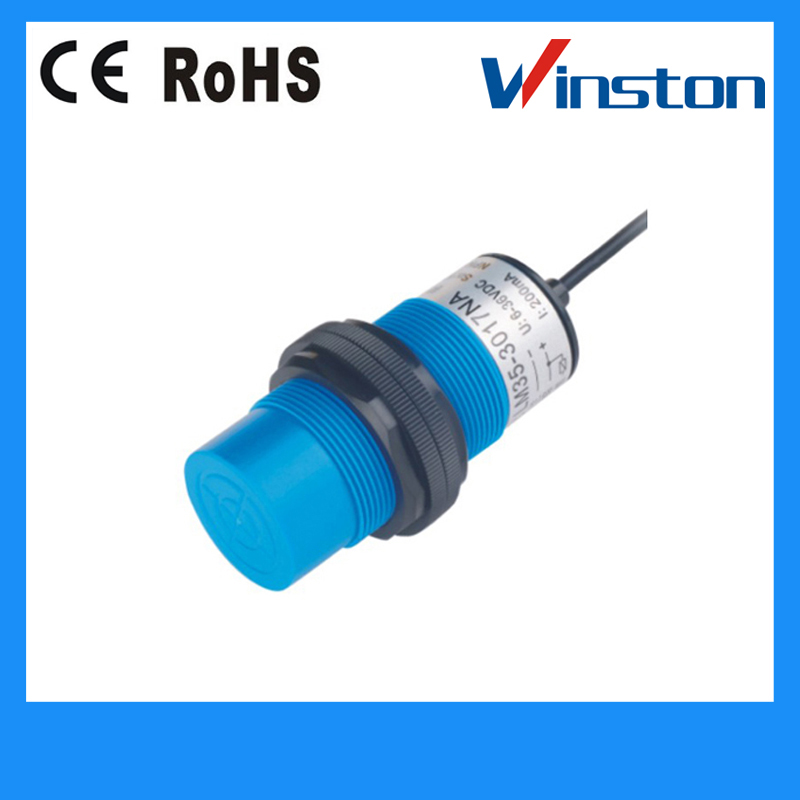

Product Picture

Winston LM35 TWO Wire Inductive Proximity Sensor Cylinder Type DC 10V - 30V CE
