IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V

Name: IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V 36V
Brand: Winston/OEM
Price: 1 USD

Buy cheap IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V product

Brand Name : Winston/OEM

Model Number : LM14

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Current : 200-300mA

Operating temperature : -25 ~ +75 ℃

Protection degree : IP 67

Diameter : 12mm

OEM : YES

ODM : YES

Aviation connector : Yes

Shell Material : Stainless steel

Rated voltage : 6-36V DC

DC/AC : 400Hz/25Hz

Connection type : 2 wire leads type

Contact Now

IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V

Technique parameter

DETECTION DISTANCE 3mm
Flush	DC 10-30V	NPN	NO	LM14-3003NA
			NC	LM14-3003NB
			NO+NC	LM14-3003NC
		PNP	NO	LM14-3003PA
			NC	LM14-3003PB
			NO+NC	LM14-3003PC
		two wire system	NO	LM14-3003LA
			NC	LM14-3003LB
	AC 90-250V	SCR Control-lable silicon	NO	LM14-2003A
			NC	LM14-2003B
			NO+NC
		Relay output
	DETECTION DISTANCE 5mm
Non-Flush	DC 10-30V	NPN	NO	LM14-3005NA
			NC	LM14-3005NB
			NO+NC	LM14-3005NC
		PNP	NO	LM14-3005PA
			NC	LM14-3005PB
			NO+NC	LM14-3005PC
		two wire system	NO	LM14-3005LA
			NC	LM14-3005LB
	AC 90-250V	SCR Control-lable silicon	NO	LM14-2005A
			NC	LM14-2005B
			NO+NC
		Relay output
Controloutput		DC		200mA
		SCR/ Relay		300mA
Output voltagc dropDC/AC				NPN/PNP< 3V, Two wire< 3.9V, AC< 10V
Consumption current				DC< 15mA, AC< 10mA
Standard detected object				15151(A3 iron)
Repeated precision				0.02
DC/AC				300Hz/25Hz
Working environment temperature				-25~+70º C
Insulation resistance				50MΩ
Shell material				Metal
Protection grade				IP67
Altemative model at home and abroad				LJ14A3

Product Description:

Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Model explanation of proximity switch

LM 18 30 05 N A □ / L

—— —— - —— —— —— —— —— ——

1 2 3 4 5 6 7 8

Switch category	Output form
Lm: Inductance type Cm: Capacitance type Sm: Hall type Am: Safety Explosion-proof type Xm: Mimic Linear type Hm: Reed type Ru: Ultrasonic type	N: Three-wire Dc NpN Output P: Three-wire Dc PnP Output L: Two-wire Dc Output : Ac Two-wire Output J: Relay Contact Output Np: NpN+PnP Double Output
Outward appearance code	Output state
□: Cylinder type F□: Angular Colum Type And Plane Installation Type	A: (no) normally Open (no) B: (nc) Normally Close (nc) C: (no-nc) normally Open-Normally Close (no+nc) Mu: Mimic Voltage Mi: Mimic Current Mui: Voltage+Current
Working voltage	Subsidiart functions
30: 6-36VDC 310:5-24VDC 320:12-60VDC 330: 10-30VDC 340:10-55VDC 350:10-60VDC 360: 5-36VDC 20:90-250VAC 210:24-250VAC 220: 380VAC40:12-240VDC/24-240AC 50: Special voltage	T: with aviation connector Y: water proof,oil proof I: special requirement H: high temp resistance R: ring type
Detection distance	Long-distance
01:1mm 05:5mm 10:10mm ......	L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1. Various location detection of machinery process center

2. Bottle lid detection

3. Stopper detection of grinding machine

4. Arm location detection of robot

5. Inspection of the exiating of milk inside the paper package

6. Spacing detection

7. Mounting non screw type pillar switch

8. Gusrd of switch lead-wire

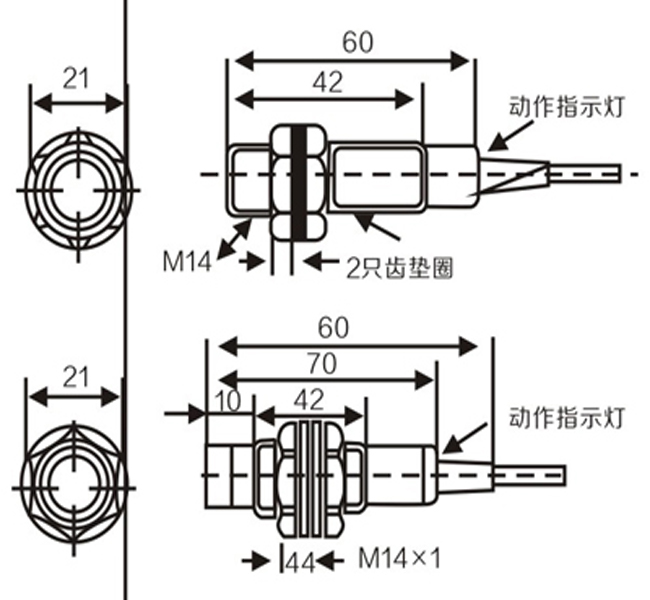

Product Dimension

IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V

Product Picture

IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V

FAQ

Q 1. what's the payment term?

A. We accept TT,30% deposit and 70% balance agaisnt copy of BL

Q 2. how's the delivery time ?

A. usually it will take about 15 days for production

Q 3. tell me the standard of package?

A. Export standard carton box

Q 4. Could you offer Form A or C/O ?

A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q 5. Would you accept to use our logo ?

A. If you have good quantity,it absolute no problem to do OEM.

Q 6. We want to know month capacity.

A. It depends on which model.For example for M12 type normal type, month capacity can reach near 20000pcs.

Q 7. Where is your market?

A. Our products are popular in Russia, Indonisia, Philippines,Italy, America, Brazil and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
