Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell

Name: Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell
Brand: Winston/OEM
Price: 1 USD

Buy cheap Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell product

Brand Name : Winston/OEM

Model Number : LMF1

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Standard detected object : A3 iron

DC/AC : 400Hz/25Hz

OEM : YES

ODM : YES

Aviation connector : YES

Repeated precison : 0.02

Output state : NO/NC/NO+NC

Operating temperature : -25 ~ +75 ℃

Protection degree : IP 67

Shell Material : ABS Resin

Insulation resistance : 50MΩ

Condition : Original new

Contact Now

Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell

Technique parameter

DETECTION DISTANCE 5MM
Flush	DC 10-30V	NPN	NO	LMF1-3005NA
			NC	LMF1-3005NB
			NO+NC
		PNP	NO	LMF1-3005PA
			NC	LMF1-3005PB
			NO+NC
		two wire system	NO	LMF1-3005LA
			NC	LMF1-3005LB
	AC 90-250V	SCR Control-lable silicon	NO
			NC
			NO+NC
		Relay output
	DETECTION DISTANCE 5MM
Non-Flush	DC 10-30V	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		two wire system	NO
			NC
	AC 90-250V	SCR Control-lable silicon	NO	LMF1-2005A
			NC	LMF1-2005B
			NO+NC
		Relay output
Controloutput		DC		200mA
		SCR/ Relay		300mA
Output voltagc dropDC/AC				NPN/PNP< 3V, Two wire< 3.9V, AC< 10V
Consumption current				DC< 15mA, AC< 10mA
Standard detected object				20201(A3 iron)
Repeated precision				0.02
DC/AC				400HZ/25HZ
Working environment temperature				-25~+70º C
Insulation resistance				50MΩ
Shell material				ABS Resin
Protection grade				IP67
Altemative model at home and abroad				SN04-N

Features:

1 . Compact volume
2 . high precision of repeated location
3 . Diversified exterior structures
4 . Good performance of anti-interference
5 . Many output forms
6 . Dust proof,vibration proof,water proof and oil proof.
7 . With short-circuit protection and inverted connecting protection.
8 . Long service life

Model explanation of proximity switch

LM 18 30 05 N A □ / L

—— —— - —— —— —— —— —— ——

1 2 3 4 5 6 7 8

Switch category	Output form
Lm: Inductance type Cm: Capacitance type Sm: Hall type Am: Safety Explosion-proof type Xm: Mimic Linear type Hm: Reed type Ru: Ultrasonic type	N: Three-wire Dc NpN Output P: Three-wire Dc PnP Output L: Two-wire Dc Output : Ac Two-wire Output J: Relay Contact Output Np: NpN+PnP Double Output
Outward appearance code	Output state
□: Cylinder type F□: Angular Colum Type And Plane Installation Type	A: (no) normally Open (no) B: (nc) Normally Close (nc) C: (no-nc) normally Open-Normally Close (no+nc) Mu: Mimic Voltage Mi: Mimic Current Mui: Voltage+Current
Working voltage	Subsidiart functions
30: 6-36VDC 310:5-24VDC 320:12-60VDC 330: 10-30VDC 340:10-55VDC 350:10-60VDC 360: 5-36VDC 20:90-250VAC 210:24-250VAC 220: 380VAC40:12-240VDC/24-240AC 50: Special voltage	T: with aviation connector Y: water proof,oil proof I: special requirement H: high temp resistance R: ring type
Detection distance	Long-distance
01:1mm 05:5mm 10:10mm ......	L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1. Various location detection of machinery process center

2. Bottle lid detection

3. Stopper detection of grinding machine

4. Inspection of the exiating of milk inside the paper package

5. Spacing detection

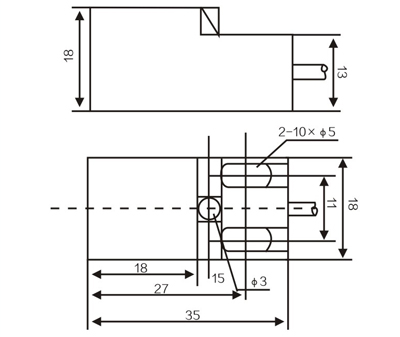

Dimension

Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell

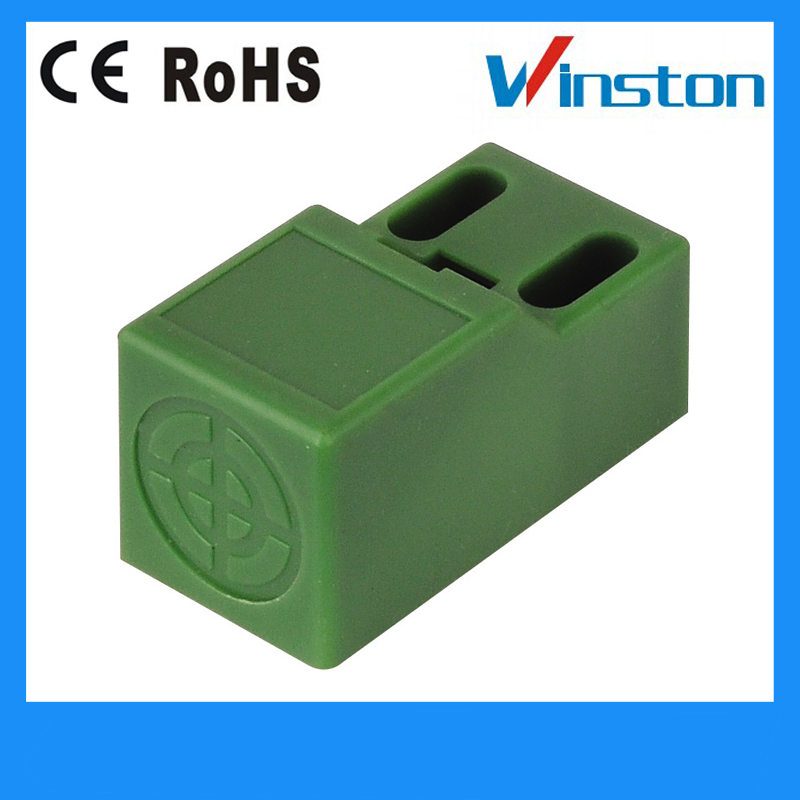

Product Picture

Miniature High Temperature Proximity Sensor Inductive Square ABS Resin Shell
