12V Angular Column Type LMF17 Induction Proximity Sensor IP67 Vibtation Proof

Name: 12V Angular Column Type LMF17 Induction Proximity Sensor IP67 Vibtation Proof
Brand: Winston/OEM
Price: 1 USD

Brand Name : Winston/OEM

Model Number : LMF17

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Standard detected object : A3 iron

OEM : YES

ODM : YES

Aviation connector : YES

Repeated precision : 0.2

Output state : NO/NC/NO+NC

Protection degree : IP 67

Condition : Original new

Insulation resistance : >=50MΩ

Working environment temperature : -25℃—+70℃

Contact Now

12V Angular Column Type LMF17 Proximity sensor IP67 Vibtation Proof

Technique parameter

	DETECTION DISTANCE 20MM
Non-Flush	DC 10-30V	NPN	NO	LMF17-3020NA
			NC	LMF17-3020NB
			NO+NC	LMF17-3020NC
		PNP	NO	LMF17-3020PA
			NC	LMF17-3020PB
			NO+NC	LMF17-3020PC
		two wire system	NO	LMF17-3020LA
			NC	LMF17-3020LB
	AC 90-250V	SCR Control-lable silicon	NO	LMF17-2020 A
			NC	LMF17-2020B
			NO+NC	LMF17-2020C
		Relay output		LMF17-2020C
Controloutput		DC		200mA
		SCR/ Relay
Output voltagc dropDC/AC				NPN/PNP< 3V, Two wire< 3.9V, AC< 10V
Consumption current				DC< 15mA, AC< 10mA
Standard detected object				50501(A3 iron)
Repeated precision				0.2
DC/AC				200Hz/50Hz
Working environment temperature				-25~+70º C
Insulation resistance				>=50MΩ
Shell material				ABS Resin
Protection grade				IP67
Altemative model at home and abroad

Features:

1 . High precision of repeated location

2 . Diversified exterior structures
3 . High on-off frequency.
4 . Wide voltage range
5 . Dust proof, vibration proof, water proof and oil proof

6 . Long service life

Model explanation of proximity switch

LM 18 30 05 N A □ / L

—— —— - —— —— —— —— —— ——

1 2 3 4 5 6 7 8

Switch category	Output form
Lm: Inductance type Cm: Capacitance type Sm: Hall type Am: Safety Explosion-proof type Xm: Mimic Linear type Hm: Reed type Ru: Ultrasonic type	N: Three-wire Dc NpN Output P: Three-wire Dc PnP Output L: Two-wire Dc Output : Ac Two-wire Output J: Relay Contact Output Np: NpN+PnP Double Output
Outward appearance code	Output state
□: Cylinder type F□: Angular Colum Type And Plane Installation Type	A: (no) normally Open (no) B: (nc) Normally Close (nc) C: (no-nc) normally Open-Normally Close (no+nc) Mu: Mimic Voltage Mi: Mimic Current Mui: Voltage+Current
Working voltage	Subsidiart functions
30: 6-36VDC 310:5-24VDC 320:12-60VDC 330: 10-30VDC 340:10-55VDC 350:10-60VDC 360: 5-36VDC 20:90-250VAC 210:24-250VAC 220: 380VAC40:12-240VDC/24-240AC 50: Special voltage	T: with aviation connector Y: water proof,oil proof I: special requirement H: high temp resistance R: ring type
Detection distance	Long-distance
01: 1mm 05: 5mm 10: 10mm ......	L: Long-distance

Application illustration of proximity switch

1 . Spacing detection

2 . Bottle lid detection

3 . Stopper detection of grinding machine

4 . Gusrd of switch lead-wire

Dimension

12V Angular Column Type LMF17 Induction Proximity Sensor IP67 Vibtation Proof

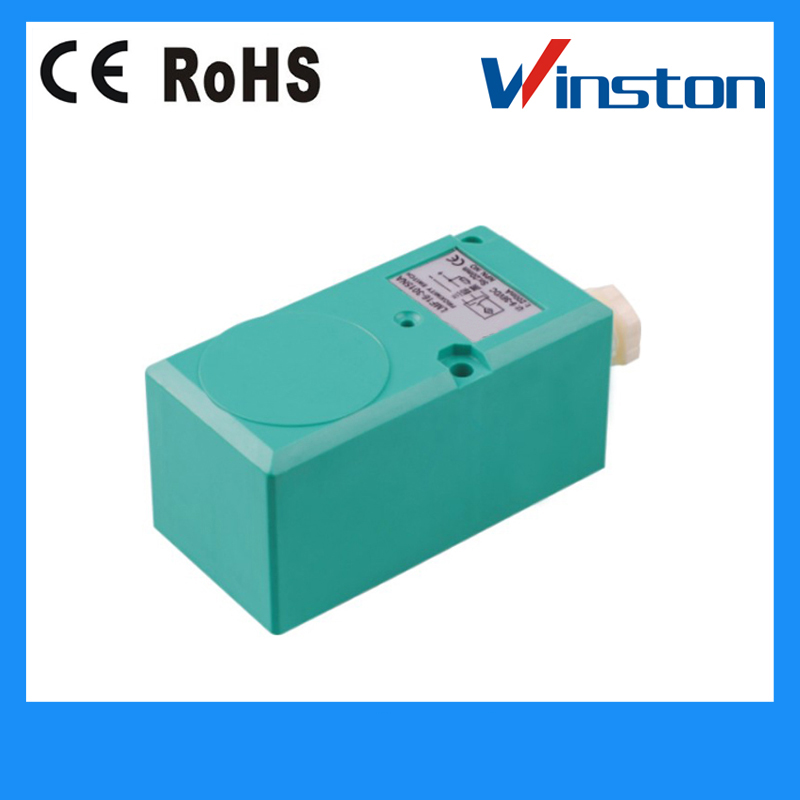

Product Picture

12V Angular Column Type LMF17 Induction Proximity Sensor IP67 Vibtation Proof
